ECO BOX
The Eco series cabinets are designed for use with HaloDyne, StatoDyne and LithoDyne batteries.

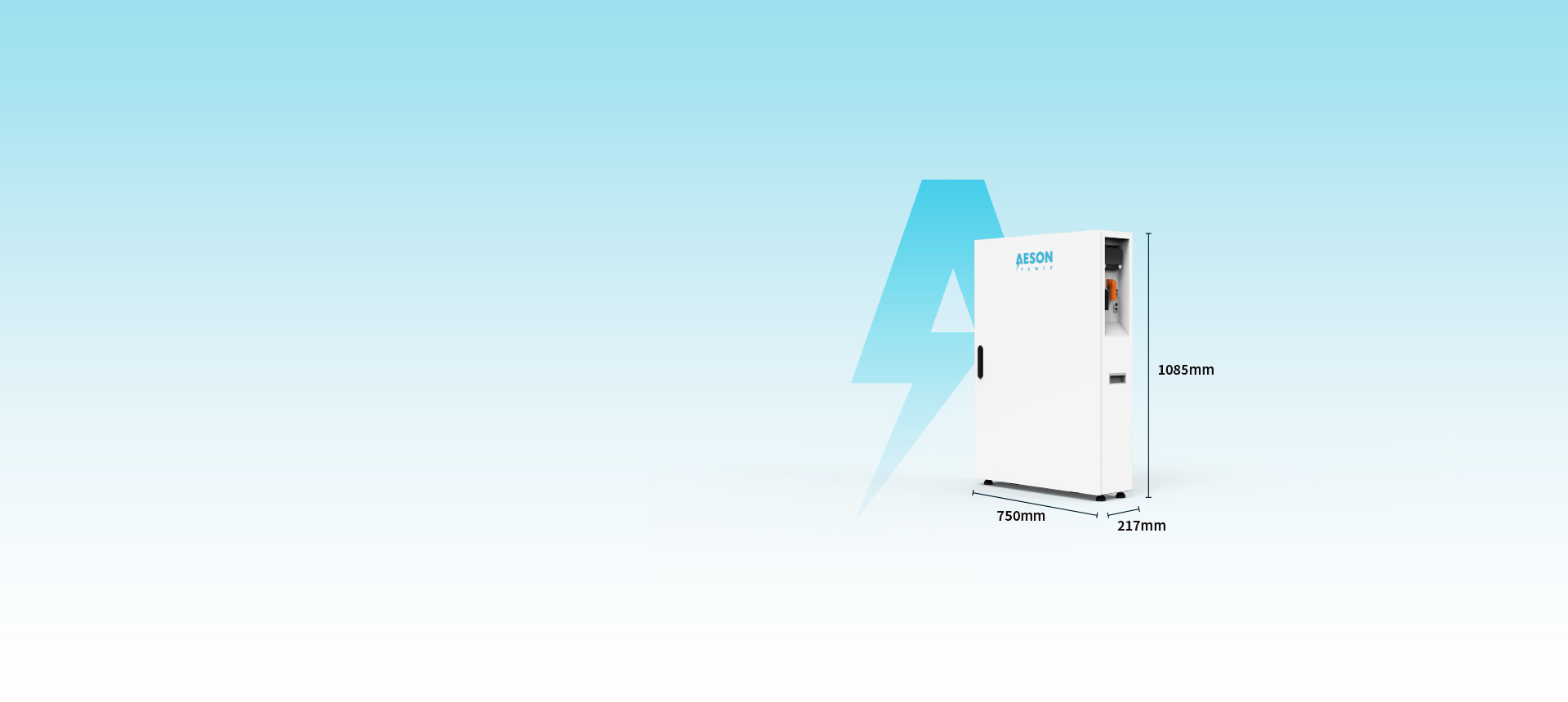

ECO BOX: 1085*750*217(mm) pre-wired enclosure for 2 * LithoDyne APS5000, 2 * HaloDyne APSI2500 or 2 * StatoDyne APSI2500UPS.
ECO BOX: 1085*750*217(mm) pre-wired enclosure for 2 * LithoDyne APS5000, 2 * HaloDyne APSI2500 or 2 * StatoDyne APSI2500UPS.

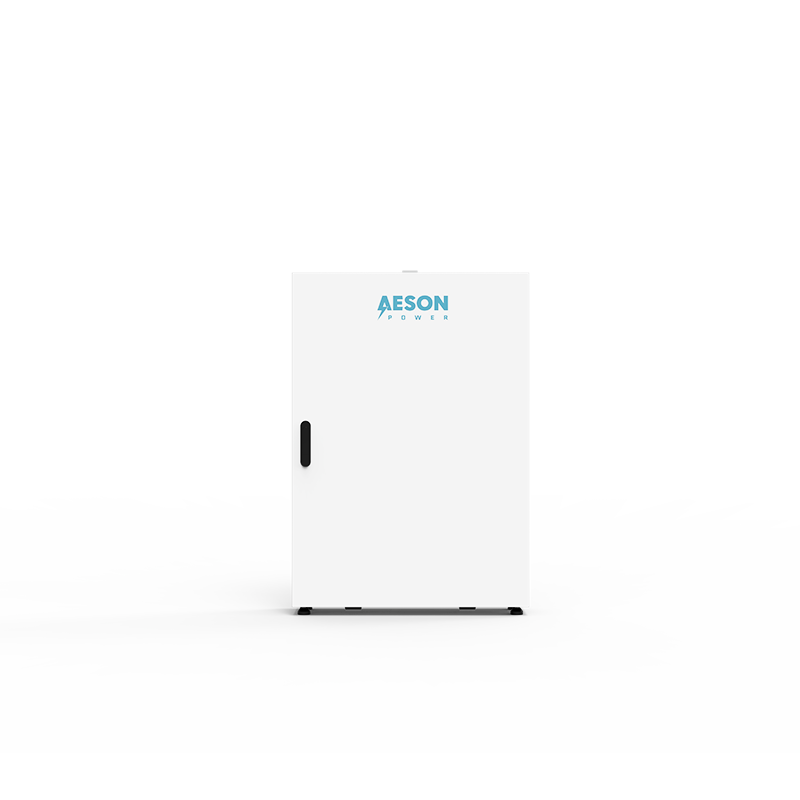

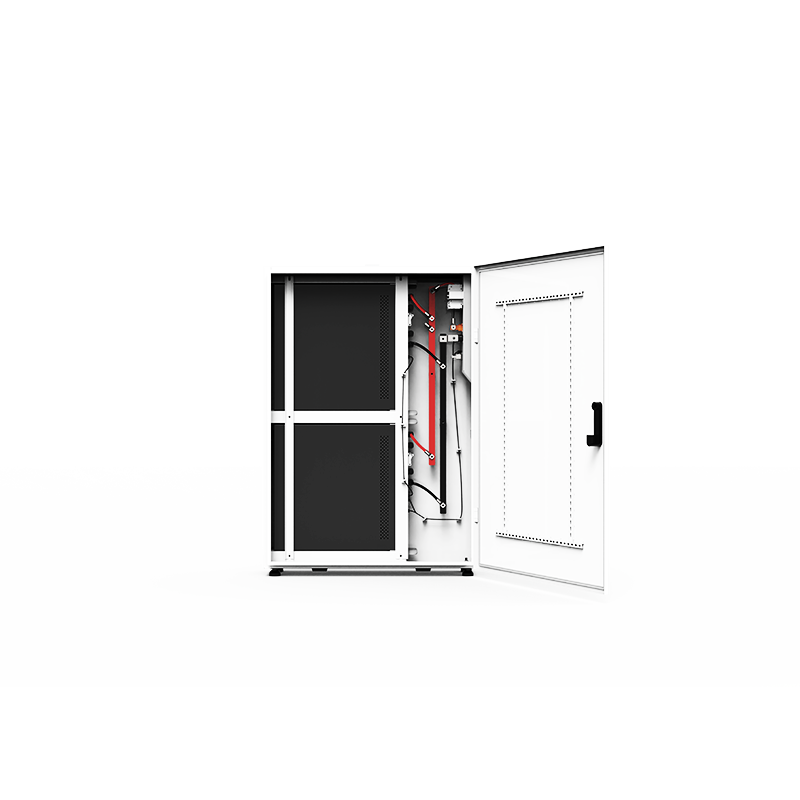

Product View
Features
-
Waterproof
-
IP54 Protection
-
Floor Mounted
-
Match Top Inverter
-
Home Available
-
Outdoor Available
Technical Specifications
| Item | ECO BOX |
| Pre-configured | PRE-WIRED with Busbar |
| Number of Battery Modules | Up to 2 |
| Installation | Floor |
| Dimensions(W*D*H) | 1085*750*217(mm) |
| Weight | 20kg |
| IP Rating | IP54 |
| Anti-Corrosion | C4H |
| Cooling | Natural Air Cooling |
| Power Cables | Rear Wiring |
| Colour | White RAL9016 |
