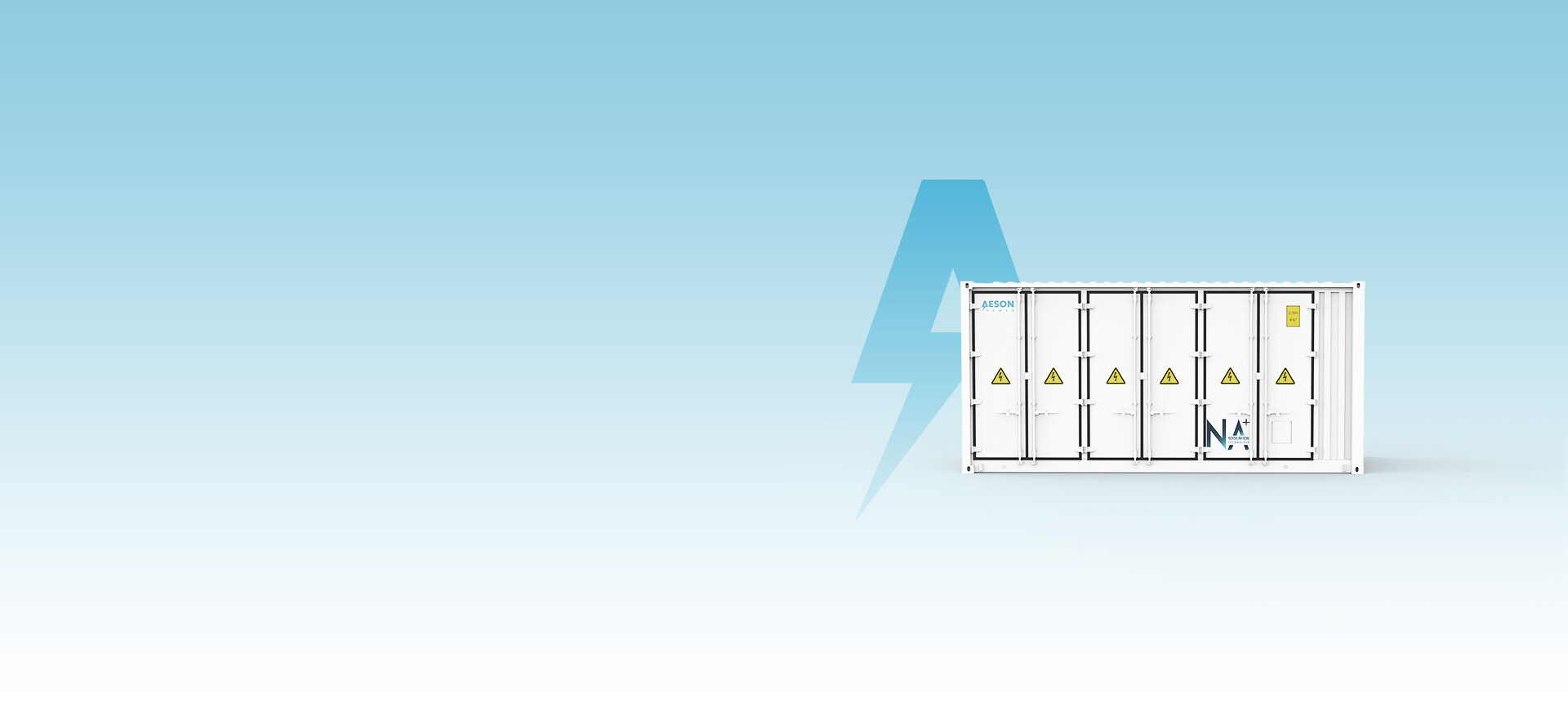

HaloDyne Na 2300
The HaloDyne Na 2300 is a utility-scale liquid-cooled sodium-ion battery energy storage system that leverages wide-temperature operability, high-level safety protection, long cycle life, and intelligent grid-tie capabilities, widely suited for large-scale energy storage power plants, large commercial & industrial projects, grid peak shaving, and renewable energy consumption scenarios
HaloDyne Na 2300 Product Page
-
High-Density All-in-One Integration
-
Multi-Layer Safety Protection
-
High-Reliability Enclosure Architecture
-
Intelligent Grid Adaptation & Dispatch
❮
❯
| Category | Item | Specifications |
| Battery Parameters | Battery Type | Sodium-ion battery, 160Ah, 2.86V |
| Battery Parameters | Rated Capacity | 2300kWh |
| Battery Parameters | Rated DC Voltage | 1189.76V |
| Battery Parameters | Rated Voltage Range | 624V~1435.2V |
| Battery Parameters | System Configuration | 12P416S |
| General Data | Cycle Life | >8000 cycles (0.5C/0.5C, 90% DOD, 80% SOH) |
| General Data | Operating Temperature | 0°C~55°C (Charging)-30°C~55°C (Discharging)Power derating above 45°C |
| General Data | Storage Temperature | -10°C~50°C |
| General Data | Relative Humidity | 5%~95% (Non-condensing) |
| General Data | Cooling Method | Liquid-Cooling |
| General Data | Fire Extinguishing Media | Aerosol |
| General Data | Altitude | ≤2000m |
| General Data | IP Rating | IP55 |
| General Data | Corrosion Resistance Class | C5 |
| General Data | Installation Site | Outdoor |
| General Data | Noise Emission | ≤75dB (1m away from the container) |
| General Data | Dimensions (D*W*H) | 6058*2438*2896mm |
| General Data | Weight | ≈38T |
| General Data | Communication Protocol | IEC 61850, Modbus, TCP/IP, CAN |
| General Data | Compliance Standards | UN 38.3, IEC 61000, IEC 62619,IEC62477, IEC 63056 |
