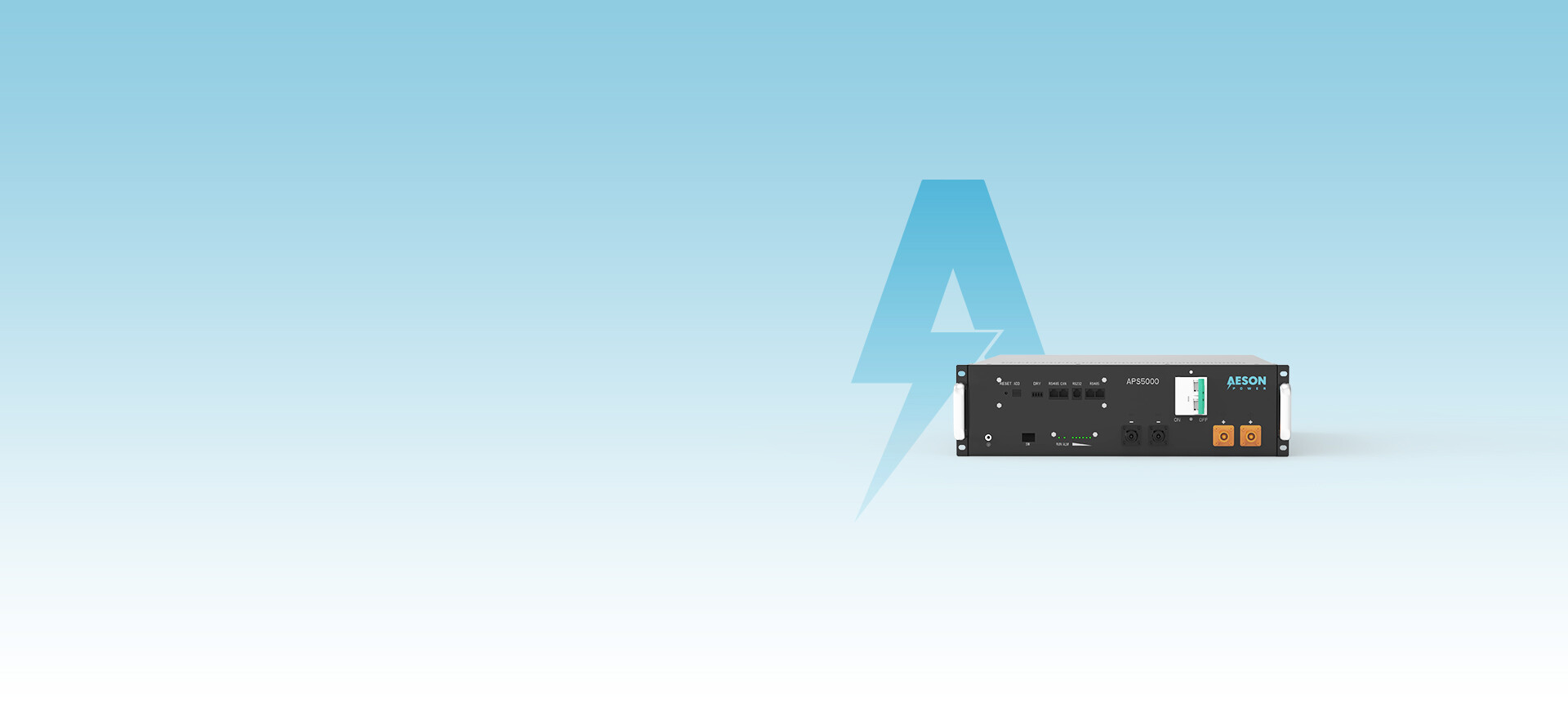

LithoDyne APS5000
LithoDyne APS5000 lithium-ion batteries are CEC listed and proven to be easy to install and compatible with any quality inverter.
APS5000 Product Page
APS5000 Datasheet
APS5000-Warranty Term
APS5000 Operation Manual(V1.6)
APS 5000 PC 485 Config Tool 31982
APS 5000 PC 232 Config Tool PBmsLVTools
APS5000 WiFi Use Instruction
APS5000 Soft Upgrade Discription
APS5000 User Description
APS5000-MSDS
APS5000 Upper Software
51.2V Solar Battery Storage System
Battery Compatibility Statement
-
100% Useable Capability
-
Match Top Inverter
-
Floor Mounted
-
Rebate Friendly
-
CEC-Listed
-
Emergency Back Up
❮
❯
| Item | Specifications | Note |
| Battery Cell Technology | Lithium Iron Phosphate | |
| Cycle Life | ≥6000 | @25°C 80%DOD@25°C 60%EOL |
| Design Life | 15+years | @25°C |
| Discharge Voltage | 46.4V~47V | |
| Charge Voltage | 56V~57V | |
| Standard Charge Current | 20A | 0.2C |
| Max. Continuous Charge/Discharge Current | 100A | 1C |
| Peak Charge/Discharge Current | 101~120A | @15min |
| Peak Charge/Discharge Current | 121~200A | @10s |
| Communication | RS485, CAN, RS232 | |
| Nominal Capacity | 100Ah | |
| Nominal Voltage | 51.2V | |
| Charge & Discharge Efficiency Discharge | >98% | 0.5C Charge;1C |
| Self-discharge/month | ≤3% | 50% SOC |
| Enclosure Protection Rating | IP20 | |
| Working Temperature Discharge | -20°C~50°C | |
| Working Temperature Charge | 0°C~60°C | |
| Working Temperature Storage | -5°C~45°C | |
| Humidity | 5%~95%(RH) | No Condensation |
| Dimensions | 442*470*133mm | |
| Weight | 44kg±1kg | |
| Certifications, Standards Compliance and Registration | UN38.3/IEC 62619IEC62040/CE/MSDS/CEC |
