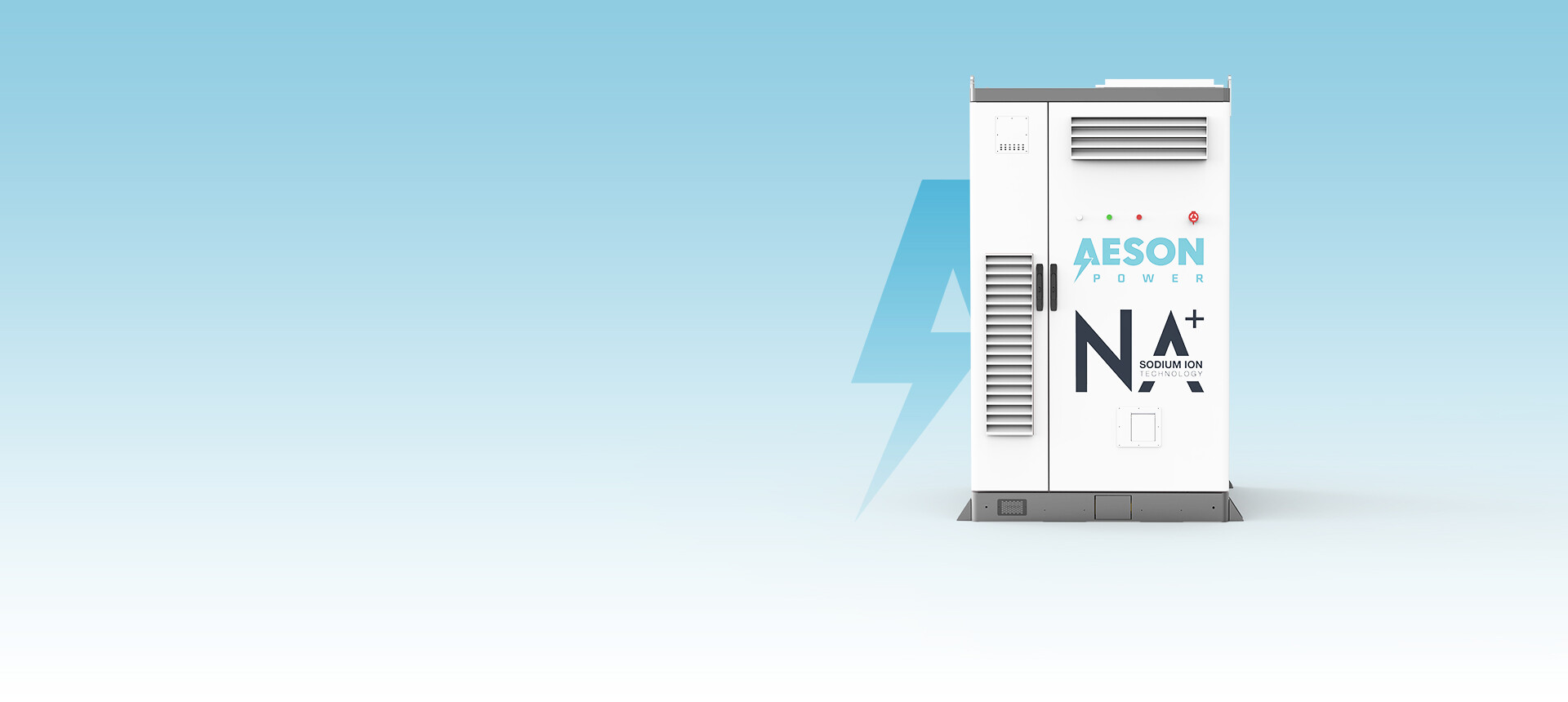

HaloDyne Na 120/119
The HaloDyne Na 120/119 is an all-in-one liquid-cooled sodium-ion energy storage system featuring wide-temperature resilience, integrated PCS, three-level intelligent fire protection, and seamless VPP integration, widely suited for commercial and industrial applications including peak-valley arbitrage, demand management, PV-storage-charging, and distributed renewable energy consumption.
HaloDyne Na 120/119 Product Page
-
Efficient Liquid Cooling Thermal Management
-
Full Lifecycle Safety Protection
-
Intelligent Energy Dispatch
-
Flexible Deployment & Simplified O&M
❮
❯
| Category | Item | Specifications |
| AC input/output | Rated Power | 120kW |
| AC input/output | Rated Voltage | 400V |
| AC input/output | Rated Frequency | 50/60Hz |
| AC input/output | Power Factor | > 0.99 |
| Battery Parameters | Battery Type | Sodium-ion battery, 160Ah, 2.86V |
| Battery Parameters | Rated Capacity | 119kWh |
| Battery Parameters | Maximum DC Current | 200A |
| Battery Parameters | Rated DC Voltage | 743.6V |
| Battery Parameters | Rated Voltage Range | 615V~897V |
| Battery Parameters | Battery Module | 148.7V/23.795kWh |
| Battery Parameters | System Configuration | 1P260S |
| General Data | Cycle Life | >6000 cycles (1C/1C, 90% DOD, 80% SOH)>8000 cycles (0.5C/0.5C, 90% DOD, 80% SOH) |
| General Data | Operating Temperature | 0°C ~ 55°C (Charging)-30°C~ 55°C (Discharging)Power derating above 45°C |
| General Data | Storage Temperature | -10°C~50°C |
| General Data | Relative Humidity | 5%~95% (Non-condensing) |
| General Data | Cooling Method | Liquid-Cooling |
| General Data | Fire Extinguishing Media | Aerosol |
| General Data | Altitude | ≤2000m |
| General Data | IP Rating | IP55 |
| General Data | Corrosion Resistance Class | C4 |
| General Data | Installation Site | Outdoor |
| General Data | Noise Emission | ≤75dB |
| General Data | Dimensions (D*W*H) | 1450*1400*2340mm |
| General Data | Weight | 2600kg |
| General Data | Communication Protocol | Modbus TCP |
| General Data | User interface | Modbus TCP/IP, IEC 61850, IEC 104, CAN |
| General Data | Remote Monitoring | Wi-Fi and Ethernet |
| General Data | BMS | Integration |
| General Data | EMS | Local integration |
| General Data | PCS | Integration, AS4777 Compliant Grid-tie Inverter |
| General Data | Max ESS Units in Parallel | On Grid up to 20; Off Grid up to 6 |
| General Data | Compliance Standards | UN 38.3, UN 3551, UN3552, IEC 61000,IEC 62619, IEC62477, IEC60529 |
