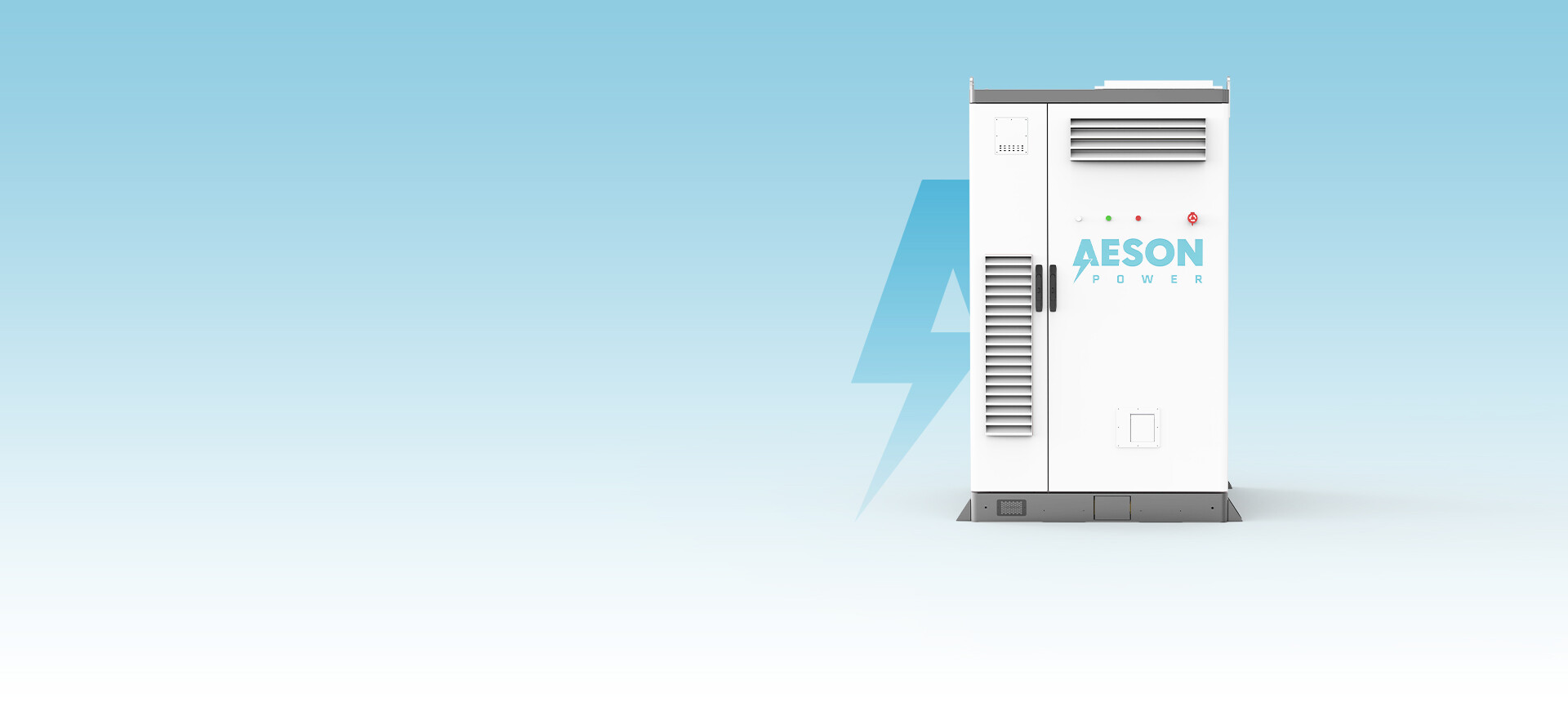

LithoDyne Li 125/261
The LithoDyne Li 125/261 is an integrated lithium-ion liquid-cooled energy storage system that
leverages advanced intelligent thermal management, multi-tier integrated safety protection, and
an all-in-one architecture, widely applicable for commercial and industrial peak-valley arbitrage,
renewable energy consumption, and solar-storage-EV charging stations.
leverages advanced intelligent thermal management, multi-tier integrated safety protection, and
an all-in-one architecture, widely applicable for commercial and industrial peak-valley arbitrage,
renewable energy consumption, and solar-storage-EV charging stations.
LithoDyne Li 125/261 Product Page
-
Multi-Scenario Adaptability
-
Multi-Tier Integrated Safety Protection
-
Efficient Integrated Deployment
-
High-Energy-Density C&I ESS
❮
❯
| Category | Item | Specifications |
| AC input/output | Rated Power | 125kW |
| AC input/output | Rated Voltage | 400V |
| AC input/output | Rated Frequency | 50/60Hz |
| AC input/output | Power Factor | > 0.99 |
| Battery Parameters | Battery Type | Lithium-ion battery, 314Ah, 3.2V |
| Battery Parameters | Rated Capacity | 261kWh |
| Battery Parameters | Maximum DC Current | 172A |
| Battery Parameters | Rated DC Voltage | 832V |
| Battery Parameters | Rated Voltage Range | 728V~936V |
| Battery Parameters | Battery Module | 166.4V/52.249kWh |
| Battery Parameters | System Configuration | 1P260S |
| General Data | Cycle Life | >6000 cycles (0.5C/0.5C, 90% DOD, 80% SOH) |
| General Data | Operating Temperature | 0°C ~ 55°C (Charging)-20°C~ 55°C (Discharging)Power derating above 45°C |
| General Data | Storage Temperature | -10°C~50°C |
| General Data | Relative Humidity | 5%~95% (Non-condensing) |
| General Data | Cooling Method | Liquid-Cooling |
| General Data | Fire Extinguishing Media | Aerosol |
| General Data | Altitude | ≤2000m |
| General Data | IP Rating | IP55 |
| General Data | Corrosion Resistance Class | C4 |
| General Data | Installation Site | Outdoor |
| General Data | Noise Emission | ≤75dB |
| General Data | Dimensions (D*W*H) | 1450*1400*2340mm |
| General Data | Weight | 2750kg |
| General Data | Communication Protocol | Modbus TCP |
| General Data | User interface | Modbus TCP/IP, IEC 61850, IEC 104, CAN |
| General Data | Remote Monitoring | Wi-Fi and Ethernet |
| General Data | BMS | Integration |
| General Data | EMS | Local integration |
| General Data | PCS | Integration, AS4777 Compliant Grid-tie Inverter |
| General Data | Max ESS Units in Parallel | On Grid up to 20; Off Grid up to 6 |
| General Data | Compliance Standards | UN38.3, UN3480, IEC61000, IEC62619, IEC63056, IEC62477, IEC60529, IEC60730 |
